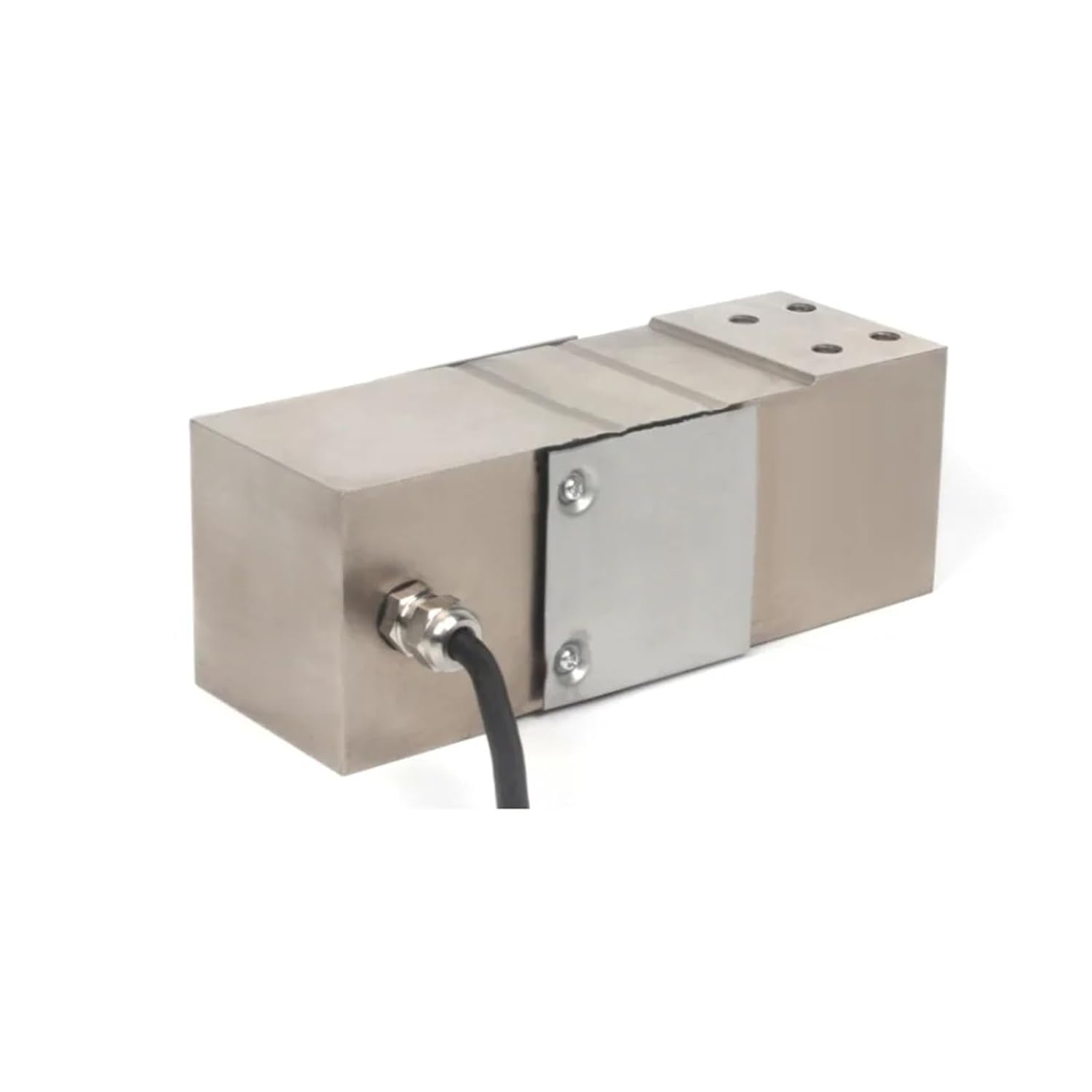

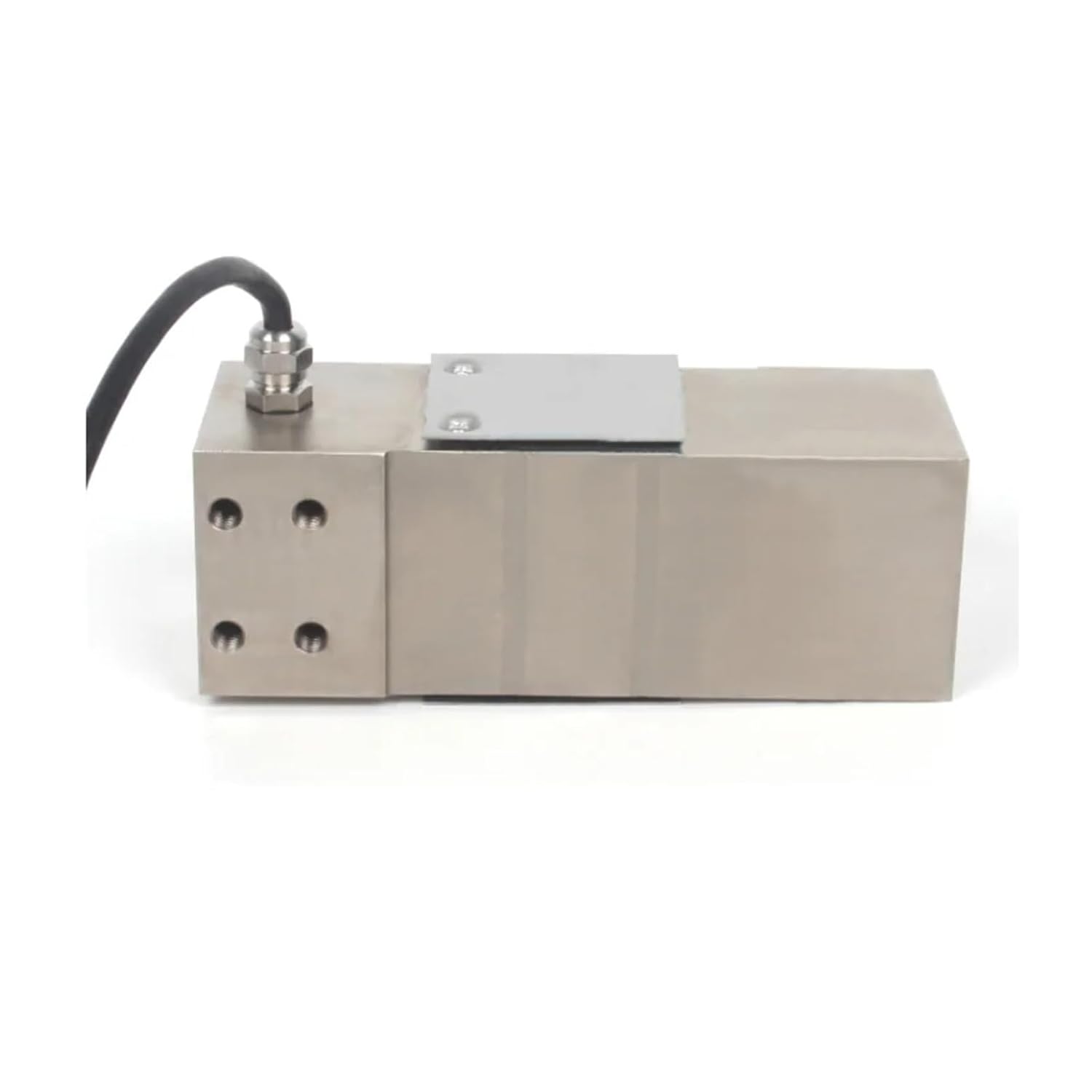

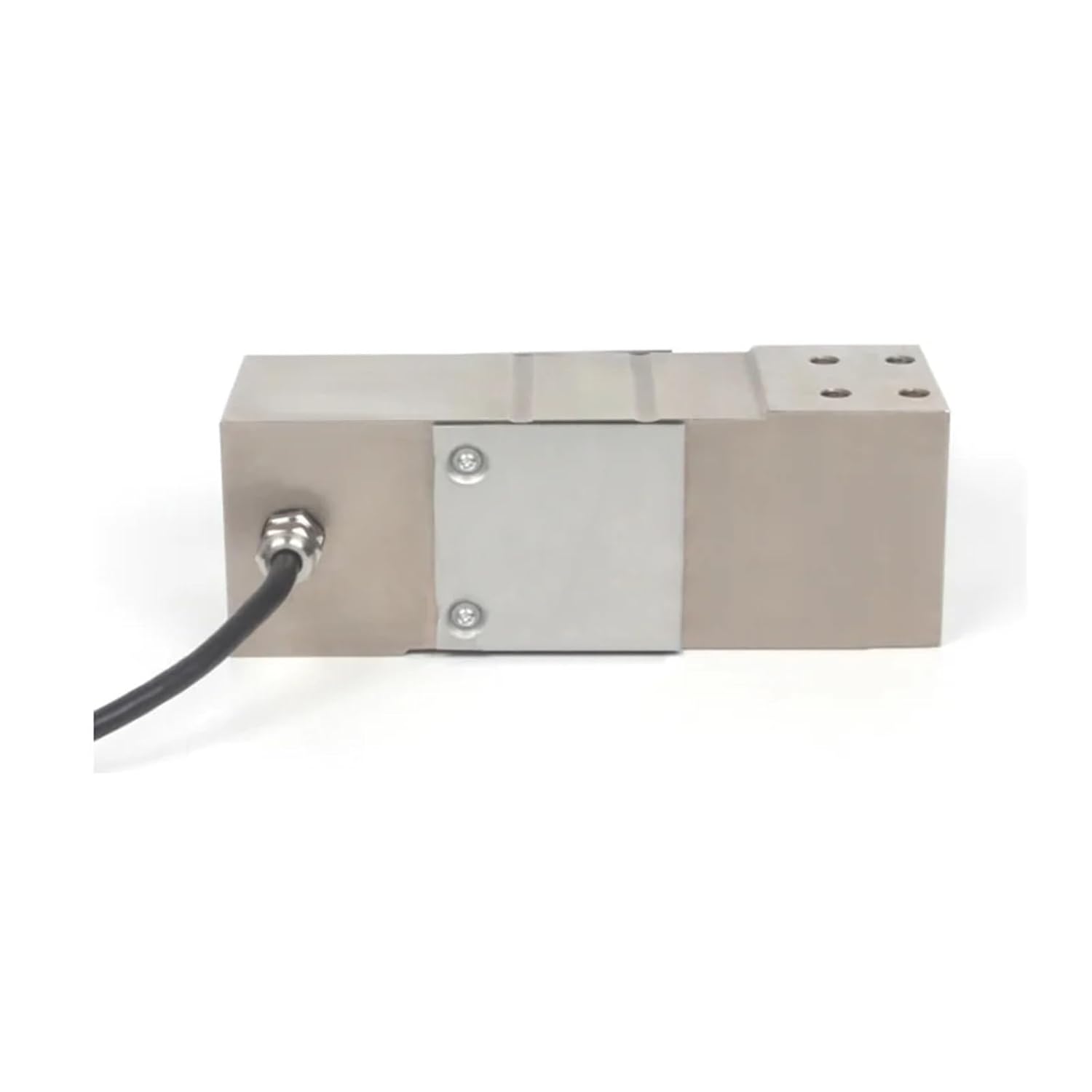

H6G Packaging Scale High Precision Load Cell Stainless Steel Weighing Sensor Weigh Bridge Electric Measuring Weight Sensor for DIY Electronic(600KG)
Product details
| Management number | 221500002 | Release Date | 2026/05/03 | List Price | US$102.67 | Model Number | 221500002 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
H6G Packaging Scale High Precision Load Cell Stainless Steel Weighing Sensor Weigh Bridge Electric Measuring Weight SensorProduct ParamentersTheory : Resistance SensorUsage : Pressure SensorModel Number : L6EMaterial : MetalType : vibration sensorOutput : Analog SensorForce range : 50KG-600KGproduct name : Load cellaccuracy : C3Maximum calibration divisions : 3000nmaxComprehensive error : ±0.02%F.SCreep : ±0.016%F.S/30minThe Effect of Temperature on Output Sensitivity : ±0.011%F.S/10The influence of temperature on zero point output : ±0.015%F.S/10Output sensitivity : 2.0±0.2(mv/v)Input impedance : 384±4Output impedance : 351±2Insulation Resistance : 5000(50VDC)MZero point output : ±1.5%F.STemperature compensation range : -10~40permitted useful temperature range : -35~70Recommended excitation voltage : 5~12(DC)vMaximum excitation voltage : 18(DC)vSafe overload range : 150%F.SExtreme overload range : 300%F.SProtection grade : IP67Material : Alloy steel
- Comprehensive error : ±0.02%F.S Creep : ±0.016%F.S/30min
- The Effect of Temperature on Output Sensitivity : ±0.011%F.S/10 The influence of temperature on zero point output : ±0.015%F.S/10
- Output sensitivity : 2.0±0.2(mv/v) Input impedance : 384±4
- Output impedance : 351±2 Insulation Resistance : 5000(50VDC)M
- Zero point output : ±1.5%F.S Temperature compensation range : -10~40
- permitted useful temperature range : -35~70 Recommended excitation voltage : 5~12(DC)v
| Color | Silver |
|---|---|
| Brand Name | JCKJEDAT |
| Part Number | TFYAJCUCA-SILVER-600KG |
| Manufacturer | JCKJEDAT |
| Weight Capacity Maximum | 1 Grams |
